Glass has always been a chemical and physical puzzle. Unlike most solids, glass is actually more like a slow-moving liquid - a 'jammed' state of matter that moves very slowly. Like cars in traffic, atoms in a glass can't reach their destination because the route is blocked by their neighbors, so it never really becomes a solid.

For more than 50 years most scientists have tried to figure out the glass puzzle. Work so far has concentrated on trying to understand the traffic jam, but now Dr Paddy Royall from the University of Bristol, with colleagues in Canberra and Tokyo, has shown that the problem really lies with the destination, not with the traffic jam.

Publishing in Nature Materials, the team has revealed that glass 'fails' to be a solid due to the special atomic structures that form in a glass when it cools (ie, when the atoms arrive at their destination).

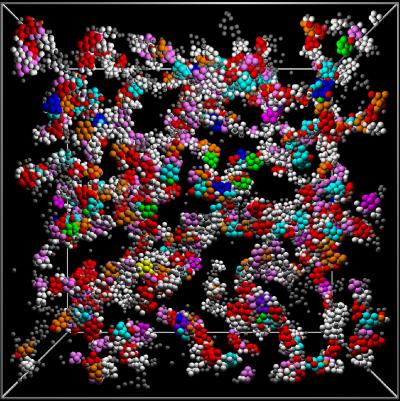

Colloidal particles, that mimic atoms, form a gel with the structure of glass. Credit: Paddy Royall, University of Bristol, UK

They say their discovery even makes possible a plane with wings made out of glass. Wonder Woman will surely thank them.

Royall explained: "Some materials crystallize as they cool, arranging their atoms into a highly regular pattern called a lattice. But although glass 'wants' to be a crystal, as it cools the atoms become jammed in a nearly random arrangement, preventing it from forming a regular lattice.

"Back in the 1950s, Sir Charles Frank in the Physics Department at Bristol University suggested that the arrangement of the 'jam' should form what is known as an icosahedron, but at the time he was unable to provide experimental proof. We set out to see if he was right."

The problem is you can't watch what happens to atoms as they cool because they are just too small. So using special particles called colloids that mimic atoms, but are just large enough to be visible using state-of-the-art microscopy, Royall cooled some down and watched what happened.

What he found was that the gel these particles formed also 'wants' to be a crystal, but it fails to become one due to the formation of icosahedra-like structures – exactly as Frank had predicted 50 years ago. It is the formation of these structures that underlie jammed materials and explains why a glass is a glass and not a liquid – or a solid.

Knowing the structure formed by atoms as a glass cools represents a major breakthrough in our understanding of meta-stable materials and will allow further development of new materials such as metallic glasses.

Metals normally crystallize when they cool, unfortunately stress builds up along the boundaries between crystals, which leads to metal failure. For example, the world's first jetliner, the British built De Havilland Comet, fell out of the sky due to metal failure. If a metal could be made to cool with the same internal structure as a glass and without crystal grain boundaries, it would be less likely to fail.

Metallic glasses could also be suitable for a whole range of products that need to be flexible such as golf clubs and engine parts.
