The tools that permit the visualization and manipulation of atoms are called proximity microscopes. This includes the Scanning Tunneling Microscope (STM), whose development in 1986 earned G. Binning and H. Rohrer the Novel prize for physics, and more recently the Atomic Force Microscope (AFM).
In a study published in Science magazine, an international team of scientists present a new method for the manipulation of atoms based on the AFM that makes it possible to build stable atomic structures at room temperature.

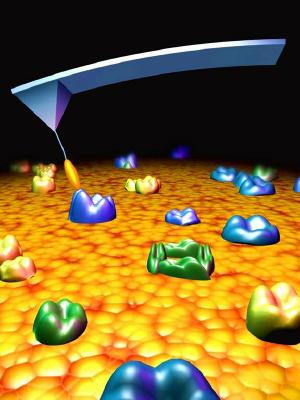

Not just 'fishing' for molecular sites with AFM now, you can write too. Credit: ASU.
Unlike previously developed atomic manipulation methods that consist of pushing or pulling atoms from the surface of a material using the tip of the microscope and require very low temperatures, the new method is based on the controlled interchange of an atom at the tip for a surface atom when the two are close enough.
Using the atoms at the tip (that are chemically different to those at the surface) as “ink”, it is possible to “write” or “draw” with the microscope. This interchange process can be repeated in different positions over the surface to form complex structures very efficiently. In particular, this group has “written” the chemical symbol for silicon “Si” (which is the chemical element used as “ink”) on a surface covered with tin atoms.
Thanks to numerical simulations based on quantum mechanics it has also been possible to explain the basic atomic mechanism behind this process and determine the conditions under which it takes place.
This new manipulation scheme drastically reduces the time necessary to realize complex atomic structures. It can even be used at room temperature and has been proven to work on various semiconductor surfaces. Therefore, this method opens new perspectives in fields like Material Science, Nanotechnology, Molecular Electronics and Spintronics.
In particular, the combination of the capacity of the AFM to manipulate individual atoms on surfaces with the possibility of identifying the chemical element. This was demonstrated by the same team in an article published in last year's Nature and will enable the construction of nanostructures with properties and functionalities specified to improve the yield of electronic devices.
For example, placing specific dopant elements in the best position on semi-conductive surfaces to increase the efficiency of nanometric transistors or magnetic atoms would open the possibility of developing devices based on the control of the spin of an electron. These techniques could also bring the possibility of “nano-facturing” of qbits, which are the basic components of what could eventually become a quantum computer.
Article: Complex Patterning by Vertical Interchange Atom Manipulation Using Atomic Force Microscopy.
Yoshiaki Sugimoto, Pablo Pou, Oscar Custance, Pavel Jelinek, Masayuki Abe, Rubén Pérez, Seizo Morita .
Science, Vol. 322, pp 413-417
