    Quasiparticle Excitons - First Direct Observation In Motion
    By News Staff | April 16th 2014 08:42 AM | 1 comment | Print | E-mail | Track Comments

    A quasiparticle called the exciton is responsible for the transfer of energy within devices, such as solar cells, LEDs, and semiconductor circuits, and has been understood for decades, but exciton movement within materials has never been directly observed.


    An exciton, which travels through matter as though it were a particle, pairs an electron, which carries a negative charge, with a place where an electron has been removed, known as a hole. Overall, it has a neutral charge, but it can carry energy. For example, in a solar cell, an incoming photon may strike an electron, kicking it to a higher energy level.

    That higher energy is propagated through the material as an exciton: The particles themselves don't move, but the boosted energy gets passed along from one to another.

    Now researchers writing in Nature Communications reveal they have imaged excitons' motions directly. This could enable research leading to significant advances in electronics, they say, as well as a better understanding of natural energy-transfer processes, such as photosynthesis.  In photosynthesis, plants absorb energy from photons, and this energy is transferred by excitons to areas where it can be stored in chemical form for later use in supporting the plant's metabolism. The new method might provide an additional tool for studying some aspects of this process.

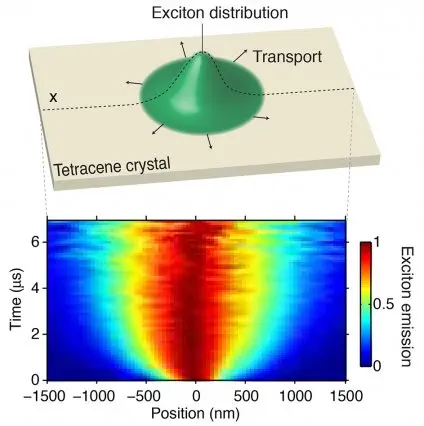

    Diagram of an exciton within a tetracene crystal, used in these experiments, shows the line across which data was collected. That data, plotted below as a function of both position (horizontal axis) and time (vertical axis) provides the most detailed information ever obtained on how excitons move through the material. Illustration courtesy of the researchers

    "Excitons are at the heart of devices that are relevant to modern technology," explains MIT post-doctoral researcher Gleb Akselrod  The particles determine how energy moves at the nanoscale. "The efficiency of devices such as photovoltaics and LEDs depends on how well excitons move within the material."

    While it was previously possible to determine how fast, on average, excitons could move between two points, "we really didn't have any information about how they got there," Akselrod says.

    "This is the first direct observation of exciton diffusion processes," says co-author and MIT professor Vladimir Bulovic, "showing that crystal structure can dramatically affect the diffusion process."

    Such information is essential to understanding which aspects of a material's structure — for example, the degree of molecular order or disorder — might facilitate or slow that motion.

    "People always assumed certain behavior of the excitons," Deotare says. Now, using this new technique — which combines optical microscopy with the use of particular organic compounds that make the energy of excitons visible — "we can directly say what kind of behavior the excitons were moving around with."

    This advance provided the researchers with the ability to observe which of two possible kinds of "hopping" motion was actually taking place.

    "This allows us to see new things," says MIT post-doctoral researcher and co-author Parag Deotare, making it possible to demonstrate that the nanoscale structure of a material determines how quickly excitons get trapped as they move through it.

    For some applications, such as LEDs, Deotare says, it is desirable to maximize this trapping, so that energy is not lost to leakage; for other uses, such as solar cells, it is essential to minimize the trapping. The new technique should allow researchers to determine which factors are most important in increasing or decreasing this trapping.

    "We showed how energy flow is impeded by disorder, which is the defining characteristic of most materials for low-cost solar cells and LEDs," noted MIT professor Marc Baldo.

    While these experiments were carried out using a material called tetracene — a well-studied archetype of a molecular crystal — the researchers say that the method should be applicable to almost any crystalline or thin-film material. They expect it to be widely adopted by researchers in academia and industry.

    "It's a very simple technique, once people learn about it," Akselrod says, "and the equipment required is not that expensive."
