One of the most fascinating nearby planetary systems, 55 Cancri, is now less mysterious.
Hopefully. The authors say theirs is the first viable model for the planetary system
of 55 Cancri, one the first stars discovered to have planets.
Numerous studies since 2002 had failed to determine a plausible model for the masses and orbits of two giant planets located closer to 55 Cancri than Mercury is to our Sun. Astronomers had struggled to understand how these massive planets orbiting so close to their star could avoid a catastrophe such as one planet being flung into the star, or the two planets colliding with each other.
The new study has combined thousands of observations with new statistical and computational techniques to measure the planets' properties more accurately, revealing that their particular masses and orbits are preventing the system from self-destructing anytime soon.

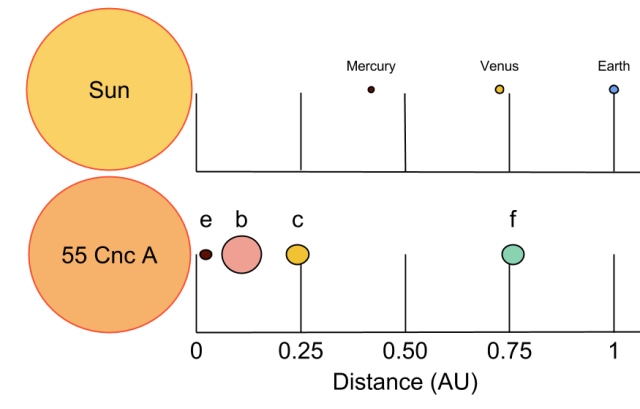

An illustration of the orbital distances and relative sizes of the four innermost planets known to orbit the star 55 Cancri A (bottom) in comparison with planets in own inner Solar System (top). Both Jupiter and the Jupiter-mass planet 55 Cancri "d" are outside this picture, orbiting their host star with a distance of nearly 5 astronomical units (AU), where one AU is equal to the average distance between the Earth and the Sun. Credit: Center for Exoplanets and Habitable Worlds, Penn State University.
"The 55 Cancri planetary system is unique both in the richness of the diversity of its known planets and the number and variety of astronomical observations," said Penn State Professor of Astronomy and Astrophysics Eric Ford, a co-author of the paper who is a member of the Penn State Center for Astrostatistics and the Penn State Institute for CyberScience. "The complexity of this system makes it unusually challenging to interpret these observations," said Ford, whose expertise includes the modelling of complex data sets.
In order to perform the new analyses, Nelson and Ford collaborated with computer scientists to develop a tool for simulating planetary systems using graphics cards to accelerate the computations. By combining multiple types of observations, the Penn State astronomers determined that one of the planets in the system (55 Cnc e) has eight times the mass of Earth, twice the distance of Earth's radius, and the same density as that of Earth. This planet is far too hot to have liquid water because its surface temperature is estimated to be 2100 degrees Celsius, so it is not likely to host life.
It was only in 2011, 8 years after the discovery of this innermost planet (55 Cnc e) that astronomers recognised it orbited its host star in less than 18 hours, rather than nearly 3 days, as originally thought. Soon after, astronomers detected the planet in transit as it moved in front of its star, allowing astronomers to measure the relative size of the planet too.
"These two giant planets of 55 Cancri interact so strongly that we can detect changes in their orbits. These detections are exciting because they enable us to learn things about the orbits that are normally not observable. However, the rapid interactions between the planets also present a challenge since modelling the system requires time consuming simulations for each model to determine the trajectories of the planets and therefore their likelihood of survival for billions of years without a catastrophic collision," said Penn State graduate student Benjamin Nelson.

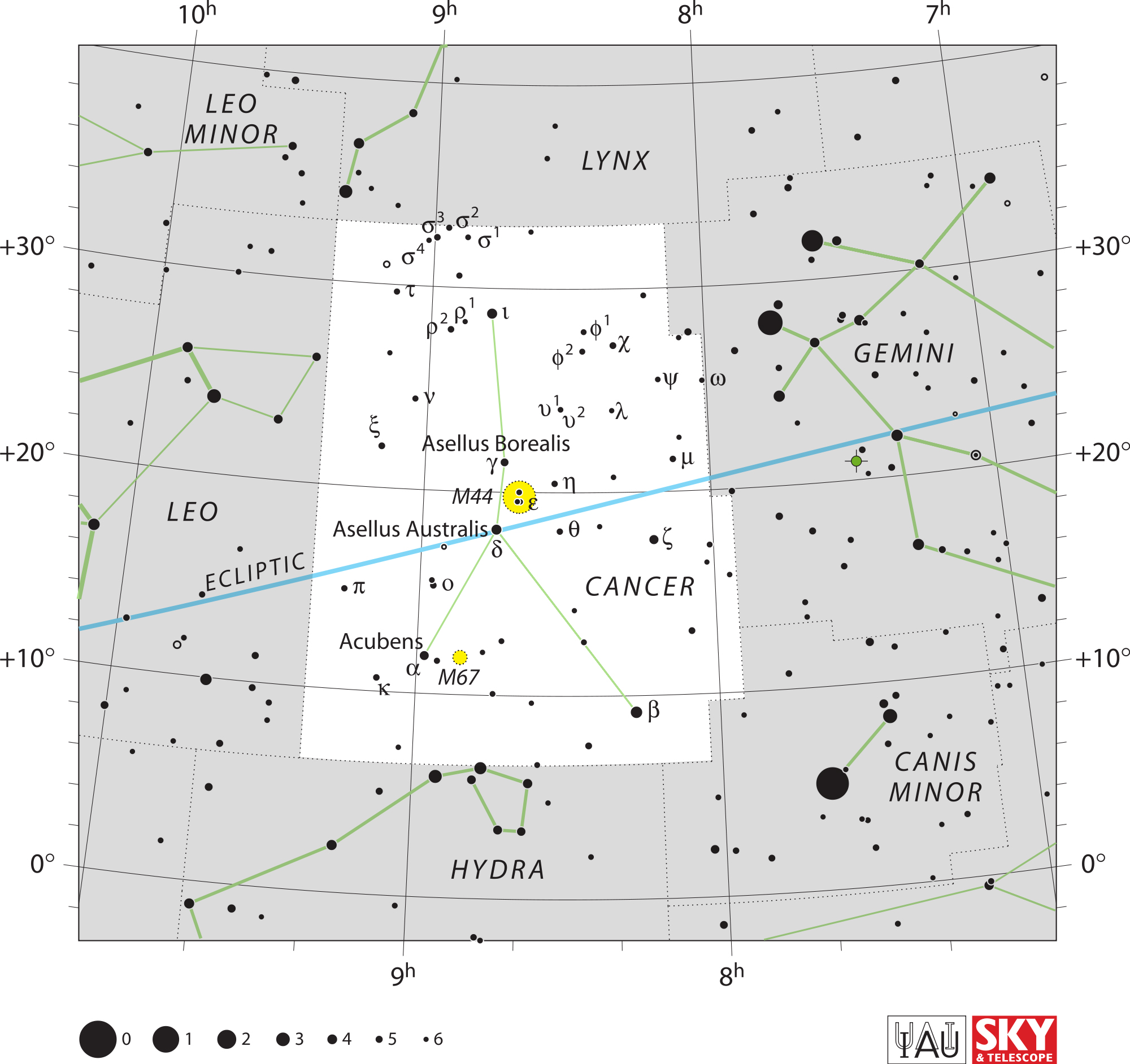

CLICK FOR LARGER SIZE. A star map for the constellation Cancer and the 55 Cancri system. The star hosting the 55 Cancri planetary system can be seen with the naked eye from a dark site. For observers in the Northern hemisphere, Cancer is best viewed in the spring. The 55 Cancri planetary system orbits the star labeled rho^1, which is slightly to the left of the top star that is connected by lines in this illustration to show the constellation Cancer. Credit: Image courtesy of the International Astronomical Union and Sky and Telescope magazine (Roger Sinnott and Rick Fienberg)
"One must precisely account for the motion of the giant planets in order to accurately measure the properties of the super-Earth-mass planet," Ford said. "Most previous analyses had ignored the planet-planet interactions. A few earlier studies had modelled these effects, but had performed only simplistic statistical analyses due to the huge number of calculations required for a proper analysis."
"This research achievement is an example of the scientific breakthroughs that come from data-intensive multidisciplinary research supported by the Penn State Institute for CyberScience," said Padma Raghavan, distinguished professor of computer science and engineering, associate vice-president for research, and director of the Penn State Institute for CyberScience.
The 55 Cancri planetary system is just 39 light years away in the constellation Cancer. Because it is so close, by astronomical standards the system shines brightly when viewed from Earth, so astronomers have been able to directly measure the radius of its star - an observation that is practical only for some of our closest stellar neighbours. Knowing the star's radius made it possible for astronomers to make precise measurements of its mass - nearly the same mass as our Sun - as well as the size and density of its super-Earth-size planet.
"Because 55 Cancri is so bright that it can be seen with the naked eye, astronomers have been able to measure the velocity of this star from four different observatories over a thousand times, giving the planets in this system much more attention than most exoplanets receive," said Penn State assistant professor Jason Wright, who led a program to scrutinise this and several other planetary systems.
Astronomers first discovered that 55 Cancri is orbited by a giant planet in 1997. Long-term observations by Wright and colleagues later made possible the detection of five planets orbiting the star, ranging from a cold giant planet with an orbit very similar to that of Jupiter to a scorching-hot "super-Earth" - a type of planet with a mass higher than Earth's but substantially below that of Neptune, which has a mass 17 times greater than Earth.
Penn State Professor of Astronomy and Astrophysics Alexander Wolszczan and his colleague Dale Frail discovered the first planets ever detected outside our solar system. These planets orbit a distant pulsar star and were the first-known super-Earth-mass planets. Recent observations by NASA's Kepler mission demonstrate that super-Earth-size planets are common around Sun-like stars.
The study led by Nelson is part of a larger effort to develop techniques that will help with the analysis of future observations in the search for Earth-like planets. Penn State astronomers plan to search for Earth-mass planets around other bright nearby stars, using a combination of new observatories and instruments such as the MINERVA project and the Habitable Zone Planet Finder being built at Penn State for the 9-m Hobby-Eberly Telescope.
"Astronomers are developing state-of-the-art instrumentation for the world's largest telescopes to detect and characterise potentially Earth-like planets. We are pairing those efforts with the development of state-of-the-art computational and statistical tools," said Ford.
Nelson will present the results of the new study at a meeting of the International Astronomical Union in Namur, Belgium in July. In addition to astronomers at Penn State, the study's co-authors include scientists at the University of Florida, Yale University, the Max-Planck Institute for Astronomy in Germany, the University of Hawaii, and the Harvard-Smithsonian Center for Astrophysics.
Preprint: Benjamin E. Nelson, Eric B. Ford, Jason T. Wright, Debra A. Fischer, Kasper von Braun, Andrew W. Howard, Matthew J. Payne, Saleh Dindar, 'The 55 Cancri Planetary System: Fully Self-Consistent N-body Constraints and a Dynamical Analysis', arXiv:1402.6343. Article: "The 55 Cancri Planetary System: Fully Self-Consistent N-body Constraints and a Dynamical Analysis", Benjamin E. Nelson, Eric B. Ford, Jason T. Wright, Debra A. Fischer, Kasper von Braun, Andrew W. Howard, Matthew J. Payne, Saleh Dindar, Monthly Notices of the Royal Astronomical Society (Oxford University Press), in press.
