At the quantum level, the atoms that make up matter and the photons that make up light behave in seemingly bizarre ways.

Particles can exist in "superposition," in more than one state at the same time (don't look!), a situation that permitted Schrödinger's famed cat to be simultaneously alive and dead.  Matter can also be entangled', what Albert Einstein called "spooky action at a distance" in such a way that one thing influences another, regardless of how far apart the two are.

Scientists have successfully measured entanglement and superposition in photons and in small collections of just a few atoms but physicists have sought to see if larger collections of atoms, namely in large forms like what we see in our day-to-day lives, also exhibit these quantum effects.

"Atoms and photons are intrinsically quantum mechanical, so it's no surprise if they behave in quantum mechanical ways. The question is, do these larger collections of atoms do this as well," says Matt LaHaye, a postdoctoral research scientist working in the laboratory of Michael L. Roukes, a professor of physics, applied physics, and bioengineering at the California Institute of Technology (Caltech) and codirector of Caltech's Kavli Nanoscience Institute.

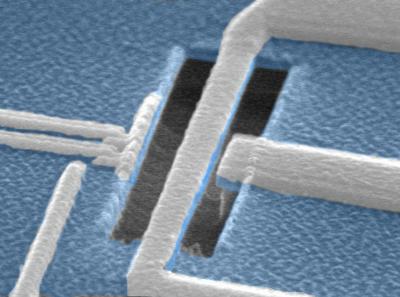

Scanning electron micrograph of a superconducting qubit in close
proximity to a nanomechanical resonator. The nanoresonator is the
bilayer (silicon nitride/aluminum) beam spanning the length of the
trench in the center of the image; the qubit is the aluminum island
located to the left of the nanoresonator. An aluminum electrode,
located adjacent to the nanoresonator on the right, is used to
actuate and sense the nanoresonator's motion.  Credit: Electron
beam lithography was performed by Richard Muller at JPL.
Nanoresonator etch was performed by Junho Suh in the Roukes
Lab. Image taken by Junho Suh.

"It'd be weird to think of ordinary matter behaving in a quantum way, but there's no reason it shouldn't," says Keith Schwab, an associate professor of applied physics at Caltech, and a collaborator of Roukes and LaHaye. "If single particles are quantum mechanical, then collections of particles should also be quantum mechanical. And if that's not the case—if the quantum mechanical behavior breaks down—that means there's some kind of new physics going on that we don't understand."

The tricky part, however is devising an experiment that can detect quantum mechanical behavior in such ordinary objects—without, for example, those effects being interfered with or even destroyed by the experiment itself.

Now, however, LaHaye, Schwab, Roukes, and their colleagues have developed a new tool that meets such fastidious demands and that can be used to search for quantum effects in a ordinary object. The researchers describe their work in the latest issue of the journal Nature.

In their experiment, the Caltech scientists used microfabrication techniques to create a very tiny nanoelectromechanical system (NEMS) resonator, a silicon-nitride beam—just 2 micrometers long, 0.2 micrometers wide, and weighing 40 billionths of a milligram—that can resonate, or flex back and forth, at a high frequency when a voltage is applied.

A small distance (300 nanometers, or 300 billionths of a meter) from the resonator, the scientists fabricated a second nanoscale device known as a single-Cooper-pair box, or superconducting "qubit"; a qubit is the basic unit of quantum information.

The superconducting qubit is essentially an island formed between two insulating barriers across which a set of paired electrons can travel. In the Caltech experiments, the qubit has only two quantized energy states: the ground state and an excited state. This energy state can be controlled by applying microwave radiation, which creates an electric field.

Because the NEMS resonator and the qubit are fabricated so closely together, their behavior is tightly linked; this allows the NEMS resonator to be used as a probe for the energy quantization of the qubit. "When the qubit is excited, the NEMS bridge vibrates at a higher frequency than it does when the qubit is in the ground state," LaHaye says.

One of the most exciting aspects of this work is that this same coupling should also enable measurements to observe the discrete energy levels of the vibrating resonator that are predicted by quantum mechanics, the scientists say. This will require that the present experiment be turned around (so to speak), with the qubit used to probe the NEMS resonator. This could also make possible demonstrations of nanomechanical quantum superpositions and Einstein's spooky entanglement

"Quantum jumps are, perhaps, the archetypal signature of behavior governed by quantum effects," says Roukes. "To see these requires us to engineer a special kind of interaction between our measurement apparatus and the object being measured. Matt's results establish a practical and really intriguing way to make this happen."

Article: "Nanomechanical measurements of a superconducting qubit," was published in the June 18 issue of Nature. In addition to LaHaye, Schwab, and Roukes, its coauthors were Junho Suh, a graduate student at Caltech, and Pierre M. Echternach of the Jet Propulsion Laboratory. The work was funded by the National Science Foundation, the Foundational Questions Institute, and Caltech's Center for the Physics of Information.
