    Building A Realistic Model River In The Lab - Train Set Size
    By News Staff | September 29th 2009 12:00 AM | Print | E-mail | Track Comments
    Should you use sand for stream restoration?    Common wisdom said no, because it disrupts salmon spawning, researchers have successfully built and maintained a scale model of a living meandering gravel-bed river in the lab and found that sand is indispensable for helping to build point bars and to block off cut-off channels and chutes--tributaries that might start and detract from the flow and health of the stream.

    The significance of vegetation for slowing erosion and reinforcing banks has been known for a long time, but this is the first time it has been scientifically demonstrated as a critical component in meandering.

    The model is a first for the delicate balance of ingredients of the model flood plain, gravel (sand), fine sediment, vegetation and water to come together in such a way that the stream took life and behaved in the way its healthy counterparts in nature would at 50 to 100 times the size and on the scale of hours instead of years.

    In 130 hours after being set into motion, this train-set size (6m x 17m) river eroded its banks and built point bars by depositing model sand and gravel moving around in its environment the way parts of the Mississippi River would over five or seven years.

    Christian Braudrick realistic meandering river train set size
    Christian Braudrick and colleagues are the first to build a scaled down meandering stream in the lab that successfully meandered through its flood plain for 130 hours which represents 5 to 7 years of real time in the wild. The substrate seen behind Braudrick is composed of sand to represent real-life gravel; white light-weight plastic for sand, and alfalfa sprouts for deep-rooting vegetation.  Credit: Zina Deretsky, National Science Foundation

    In nature, this behavior not only achieves a "picture perfect" waterway with pleasing bends, but it yields what earth scientist Braudrick calls "more biological bang for the buck."

    "Meandering" generally occurs in streams with moderate slopes and is a common form of river between canyon-bound rivers in the mountains and deltas near the ocean. The physics and geology of meandering streams combine to yield both shallow portions as well as deeper pools. The diversity of habitat is a more hospitable environment to sustain a higher diversity of species. This is in contrast to another stream type with many islands but more uniform and shallower water called "braided streams."

    Stream restoration is an extremely complex and delicate science. Because there is no formula to create meandering streams. Successful stream restorers almost require a sixth sense to get everything right and set a sustainable environment into motion, and not every restored stream lasts. Some form extra channels becoming braided streams; some stagnate.

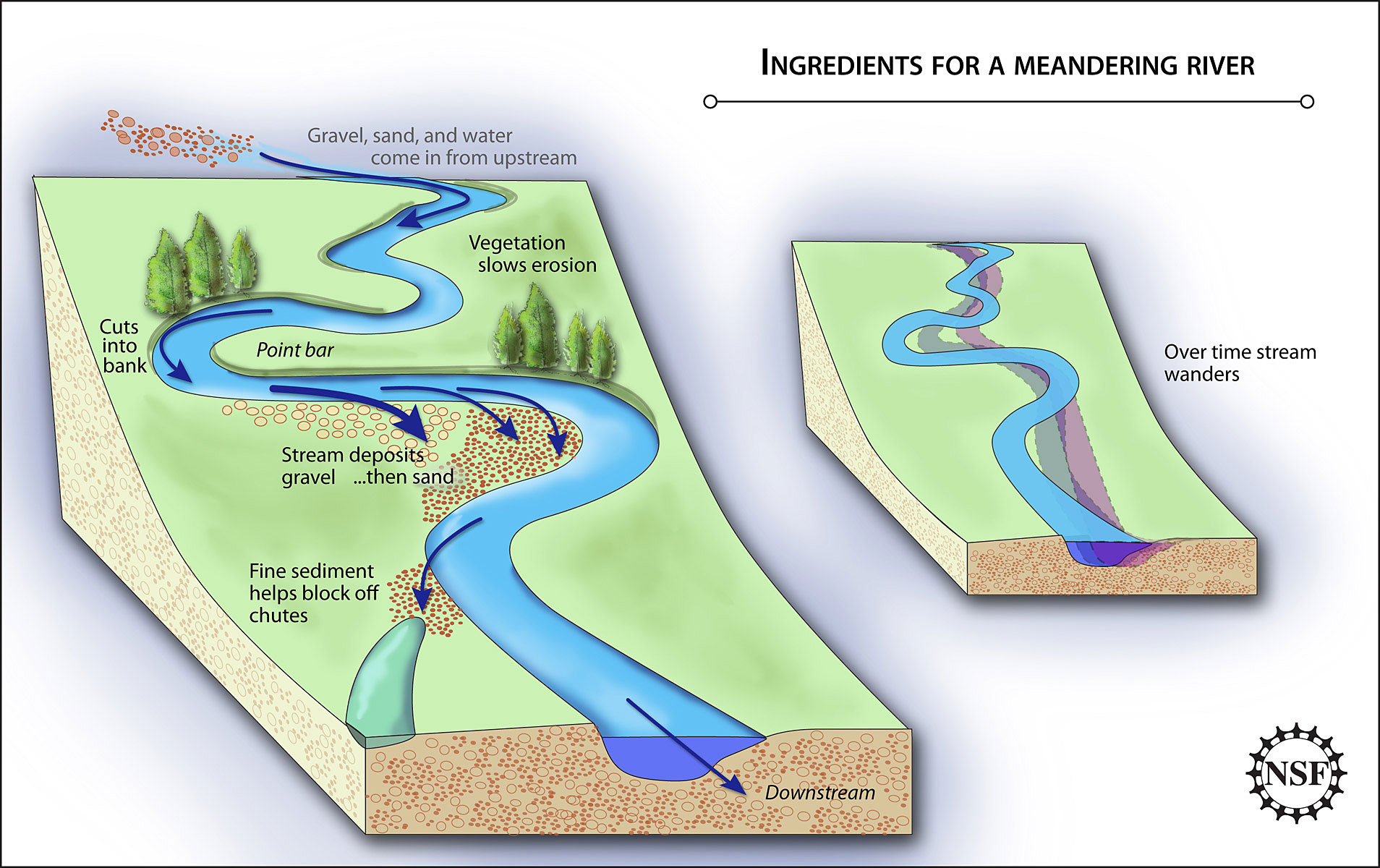

    reverse engineering a meandering stream
    By reverse-engineering a meandering stream, researchers have shown two ingredients to be very important: vegetation to reinforce banks and prevent erosion, and sand to build point bars and block off cut-off channels and chutes. This knowledge will help stream restoration efforts in the future.  Credit: Zina Deretsky, National Science Foundation

    Braudrick and his colleagues hope to shed light on the necessary conditions for sustained meandering in coarse bedded rivers. They have used a clever combination of painted sand that stands in for gravel, a light weight plastic that looks like sugar for sand, and alfalfa sprouts that stand in for the deep rooted vegetation, such as cottonwoods or willows that grow along many meandering rivers in the wild.

    The research was funded in part by the National Science Foundation and appears in the Sept. 28, 2009 issue of the Proceedings of the National Academy of Science.
