    Dwarf Planet 2012 VP113 Hints At A Huge Unknown Mystery Planet In The Solar System?
    By News Staff | March 26th 2014 03:36 PM | Print | E-mail | Track Comments

    We know the Voyager spacecraft has left the solar system. What no one can really say is when. Boundaries in space are entirely human vanities, there is no 'Now leaving the Local System' sign after Pluto.

    Well, it's all so unsettled that two percent of astronomers even decided Pluto wasn't even a planet.

    But no matter how we define a planet, the solar system has a new most-distant member, according to new work from Carnegie's Scott Sheppard and Chadwick Trujillo of the Gemini Observatory. In Nature, they report the discovery of the distant dwarf planet 2012 VP113 beyond the known 'edge' of the Solar System.

    It's likely one of thousands of distant objects that are thought to form the inner Oort cloud, nothing special there, but what is special is that their work indicates the potential presence of an enormous planet, perhaps up to 10 times the size of Earth, that has not yet seen but may be influencing the orbit of 2012 VP113 as well as other inner Oort cloud objects.




    Discovery images of 2012 VP113, affectionately called 'Biden' because of the VP in the provisional name. Get it?? Also, it is a good idea to get funding. Naming a launch vehicle a Baracket is also good job security. Credit: Scott Sheppard and Chad Trujillo

    The known Solar System can be divided into three parts: the rocky planets like Earth, which are close to the Sun; the gas giant planets, which are further out; and the frozen objects of the Kuiper belt, which lie just beyond Neptune's orbit. Beyond this, there appears to be an edge to the Solar System where only one object, Sedna, was previously known to exist for its entire orbit. But the newly found 2012 VP113 has an orbit that stays even beyond Sedna, making it the furthest known in the Solar System.

    "This is an extraordinary result that redefines our understanding of our Solar System," says Linda Elkins-Tanton, director of Carnegie's Department of Terrestrial Magnetism.

    Sedna was discovered beyond the Kuiper Belt edge in 2003, and it was not known if Sedna was unique, as Pluto once was thought to be before the Kuiper Belt was discovered. With the discovery of 2012 VP113 it is now clear Sedna is not unique and is likely the second known member of the hypothesized inner Oort cloud, the likely origin of some comets.

    2012 VP113's closest orbit point to the Sun brings it to about 80 times the distance of the Earth from the Sun, a measurement referred to as an astronomical unit or AU. For context, the rocky planets and asteroids exist at distances ranging between .39 and 4.2 AU. Gas giants are found between 5 and 30 AU, and the Kuiper belt (composed of thousands of icy objects, including Pluto) ranges from 30 to 50 AU. In our solar system there is a distinct edge at 50 AU. Only Sedna was known to stay significantly beyond this outer boundary at 76 AU for its entire orbit.

    "The search for these distant inner Oort cloud objects beyond Sedna and 2012 VP113 should continue, as they could tell us a lot about how our Solar System formed and evolved," says Sheppard.

    Sheppard and Trujillo used the new Dark Energy Camera (DECam) on the NOAO 4 meter telescope in Chile for discovery. DECam has the largest field-of-view of any 4-meter or larger telescope, giving it unprecedented ability to search large areas of sky for faint objects. The Magellan 6.5-meter telescope at Carnegie's Las Campanas Observatory was used to determine the orbit of 2012 VP113 and obtain detailed information about its surface properties.

    From the amount of sky searched, Sheppard and Trujillo determine that about 900 objects with orbits like Sedna and 2012 VP113 with sizes larger than 1000 km may exist and that the total population of the inner Oort cloud is likely bigger than that of the Kuiper Belt and main asteroid belt.

    "Some of these inner Oort cloud objects could rival the size of Mars or even Earth. This is because many of the inner Oort cloud objects are so distant that even very large ones would be too faint to detect with current technology", says Sheppard.

    Both Sedna and 2012 VP113 were found near their closest approach to the Sun, but they both have orbits that go out to hundreds of AU, at which point they would be too faint to discover. In fact, the similarity in the orbits found for Sedna, 2012 VP113 and a few other objects near the edge of the Kuiper Belt suggests that an unknown massive perturbing body may be shepherding these objects into these similar orbital configurations. Sheppard and Trujillo suggest a Super Earth or an even larger object at hundreds of AU could create the shepherding effect seen in the orbits of these objects, which are too distant to be perturbed significantly by any of the known planets.

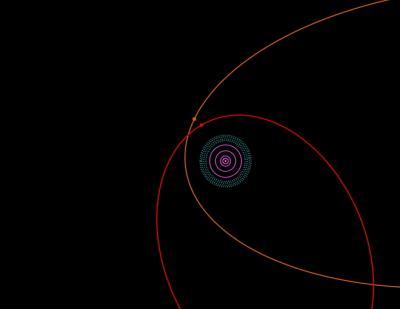

    This is an orbit diagram for the outer solar system. The Sun and
    Terrestrial planets are at the center. The orbits of the four giant
    planets, Jupiter, Saturn, Uranus and Neptune, are shown by purple solid
    circles. The Kuiper Belt, including Pluto, is shown by the dotted
    light blue region just beyond the giant planets. Sedna's orbit is
    shown in orange while 2012 VP113's orbit is shown in red. Both
    objects are currently near their closest approach to the Sun
    (perihelion). They would be too faint to detect when in the outer
    parts of their orbits. Notice that both orbits have similar
    perihelion locations on the sky and both are far away from the giant planet and Kuiper Belt regions. Credit: Scott Sheppard and Chad Trujillo

    There are three competing theories for how the inner Oort cloud might have formed. As more objects are found, it will be easier to narrow down which of these theories is most likely accurate. One theory is that a rogue planet could have been tossed out of the giant planet region and could have perturbed objects out of the Kuiper Belt to the inner Oort cloud on its way out. This planet could have been ejected or still be in the distant solar system today. The second theory is that a close stellar encounter could put objects into the inner Oort cloud region. A third theory suggests inner Oort cloud objects are captured extra-solar planets from other stars that were near our Sun in its birth cluster.

    The outer Oort cloud is distinguished from the inner Oort cloud because in the outer Oort cloud, starting around 1500 AU, the gravity from other nearby stars perturbs the orbits of the objects, causing objects in the outer Oort cloud to have orbits that change drastically over time. Many of the comets we see were objects that were perturbed out of the outer Oort cloud. Inner Oort cloud objects are not highly affected by the gravity of other stars and thus have more stable and more primordial orbits.
