Sunspots Might Be Fooling Us Into Seeing Distant Earth-like Planets
    By News Staff | July 5th 2014 02:30 PM | 1 comment | Print | E-mail | Track Comments

    Astronomers search for exoplanets by measuring shifts in the pattern of a star's spectrum - the different wavelengths of radiation that it emits as light.

    These "Doppler shifts" result from subtle changes in the star's velocity caused by the gravitational tugs of orbiting planets, but Doppler shifts of a star's absorption lines can also result from magnetic events like sunspots originating within the star itself -- giving false clues of a planet that does not actually exist.

    "In the search for low-mass planets,"  said Suvrath Mahadevan, an assistant professor of astronomy and astrophysics at Penn State and a coauthor of a new research paper om the issue, "accounting for the subtle signature of a magnetics events in the star is as important as obtaining the highest possible Doppler precision."

    Due to this discovery, a research team has found that some signals suspected to be coming from two planets orbiting the star at a distance where liquid water could potentially exist, actually are coming from events inside the star itself, not from so-called "Goldilocks planets" where conditions are just right for supporting life.

    "This result is exciting because it explains, for the first time, all the previous and somewhat conflicting observations of the intriguing dwarf star Gliese 581, a faint star with less mass than our Sun that is just 20 light years from Earth," said lead author Paul Robertson, a postdoctoral fellow at Penn State. As a result of this research, the planets now confirmed to be orbiting this dwarf star total exactly three.

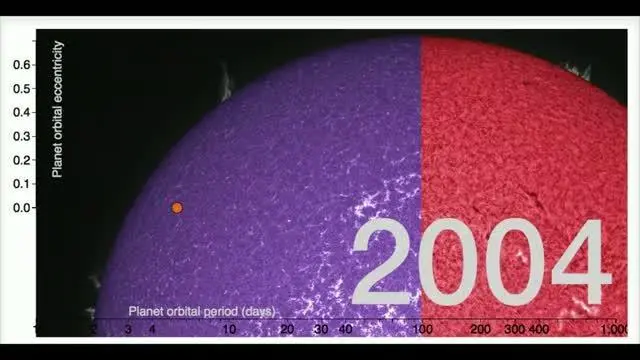

    Detections about
    red dwarf star Gliese 581
    , made with the Doppler technique, were published in scientific papers from 2004 to 2014 and put some of the claimed planets in or near the star's habitable zone, where it might be possible for life as we know it to exist. Blue indicates detections of candidate planets in the just-right region inside or near the habitable zone, where liquid water could exist. Orange indicates detections in the too-hot region that is too close to the star. Green indicates detections in the too-cold region farther away from the star and outside the habitable zone. Credit: NASA/Penn State University

    "We also have proven that some of the other controversial signals are not coming from two additional proposed Goldilocks planets in the star's habitable zone, but instead are coming from activity within the star itself," said Mahadevan. None of the three remaining planets, whose existence the research confirms, are solidly inside this star system's habitable zone, where liquid water could exist on a rocky planet like Earth.

    The research team made its discovery by analyzing Doppler shifts in existing spectroscopic observations of  Gliese 581 obtained with the ESO HARPS and Keck HIRES spectrographs. The Doppler shifts that the scientists focused on were the ones most sensitive to magnetic activity. Using careful analyses and techniques, they boosted the signals of the three innermost planets around the star, but "the signals attributed to the existence of the two controversial planets disappeared, becoming indistinguishable from measurement noise," Mahadevan said. "The disappearance of these two signals after correcting for the star's activity indicates that these signals in the original data must have been produced by the activity and rotation of the star itself, not by the presence of these two suspected planets.

    "Our improved detection of the real planets in this system gives us confidence that we are now beginning to sufficiently eliminate Doppler signals from stellar activity to discover new, habitable exoplanets, even when they are hidden beneath stellar noise, said Robertson. "While it is unfortunate to find that two such promising planets do not exist, we feel that the results of this study will ultimately lead to more Earth-like planets.".

    The size of each planet in this figure corresponds to its minimum mass. Some simplifications have been made for illustrative purposes. The refereed literature provides a complete history of the scientific publications relevant to this star and its planets.

    Older stars such as Gliese 581, an "M dwarf" star in the constellation Libra about one-third the mass of our Sun, have until now been considered highly attractive targets in the search for extraterrestrial life because they are generally less active and so are better targets for Doppler observations. "The new result from our research highlights a source of astrophysical noise even with old M dwarfs because the harmonics of the star's rotation can be in the same range as that of its habitable zone, raising the risk of false detections of nonexistent planets," Mahadevan said. "Higher-precision analysis for discovering Earth-like planets using spectrographs will be increasingly more necessary as next-generation spectrographs with the higher Doppler precision needed for detecting important subtle signatures come on line this decade -- like the Habitable Zone Planet Finder (HPF) that our team now is developing at Penn State." A description of this research is available on the Habitable Zone Planet Finder blog

    Published in Science. Source: Penn State
