Thid past week the “Klinikum rechts der Isar” of the Technical University of Munich saw the first transplant of complete arms after several years of preparatory work.

The patient's name was not released, and all that is known about the the identity of the arm donor is that it was a young person who died shortly before the surgery.

The patient, doing well given the circumstances, was operated on by the Clinic for Plastic Surgery and Hand Surgery (Director Prof. Hans-Günther Machens). The procedure, with a team of 40 people participating, was headed by PD Dr. Christoph Höhnke (Head of the transplant team, Senior Physician of the Clinic for Plastic Surgery and Hand Surgery) and Prof. Edgar Biemer (long-standing ex-board member of the plastic surgery division).

Case history

Six years ago, a 54 year-old farmer lost both his arms at upper arm level during an accident, making it necessary for him to rely on assistance for many activities of daily life.

After two attempts with various artificial limbs had proven unsuccessful, he approached the Clinic for Plastic Surgery and Surgery at the “Klinikum rechts der Isar” for help and came into contact with a team of physicians with the ideal prerequisites for the unprecedented operation.

With PD Dr. Christoph Höhnke, who accepted the overall management of the transplantation team, and the former Head of Plastic Surgery at the “Klinikum rechts der Isar”, Prof. Edgar Biemer, he also met two physicians who have not only clinically but also scientifically dealt with problems concerning transplants or microsurgery for many years. In addition, the current Director of the Clinic, Prof. Hans-Günther Machens, had himself been active in transplant surgery for many years and, when he began office in December 2007, was prepared to actively support this project and take on medical responsibility.

The physicians of the Clinic for Plastic Surgery initially had to clarify whether the future patient was physically and psychologically suitable for the difficult surgical procedure. The man was thoroughly examined because good overall health was necessary for the suppression of the immune defence system required after transplantation.

They also wanted to ensure that he had a stable personality and a stable social environment. The last phase of operative preparation was represented by an explorative operation on the upper arm stump, during which the physicians tested to see where and how they would be able to seal off nerves and vessels during transplant. During this procedure they ascertained that the main artery in the left shoulder was occluded; this would thus require several bypasses.

Now it was solely a matter of waiting for a suitable donor, matching the host in sex, age, skin color, size and blood group and would have no injuries to the upper extremities.

The Operation

The operation came together on the evening of the 25th of July around 10 p.m.: five teams started working simultaneously in two operating theatres - one group each on the left and right side of the donor and host and an additional team removing a leg artery from the donor.

First they had to expose each of the muscle ends, nerves and the vessels and prepare them for connection. Before the donor's bones were severed, the blood vessels in the arms were filled with cooled preservation solution (perfusion).

Both arms were then removed in such a way, that they accurately corresponded to the patient's arm length. Now both surgical teams connected the new body parts to the body of the host on both sides in a step-by-step procedure.

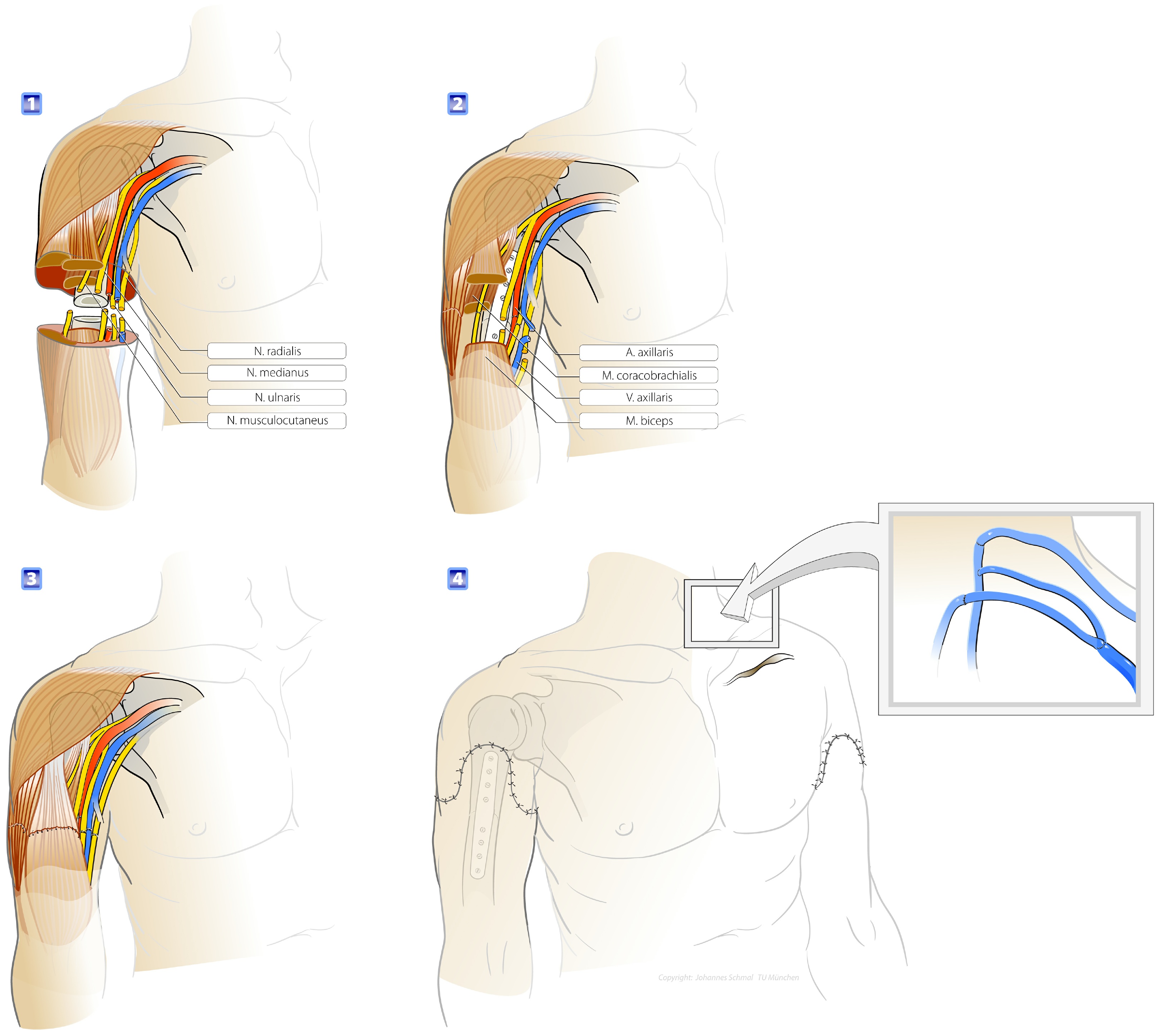

First they joined the bones together with an 8 hole plate. They then connected the arteries and veins in order to recreate circulation of the transplanted arms as quickly as possible. The left side had already been prepared with three venous bypasses. Before completion of the anastomoses, the arms were rinsed with a special liquid to remove the preservation solution. Then the blood was released at intervals of 20 minutes; because from an anaesthetic point of view it must be ensured that the patient does not suffer acute damage from the blood flowing back from the transplants.

The arms quickly took on their rosy color. There was no significant swelling - proof for a well-functioning circulation and a short ischemia period (lack of tissue circulation). The surgeons then sewed the muscle and tendon strands back together and finally reconnected all the nerves (nervus musculocutaneus, nervus radialis, nervus ulnaris and nervus medianus). Now the skin could be sewn back together. Finally, a cross-joint fixateur externe was attached with pins to the lower and upper arm. This allows the arms to be suspended to avoid pressure marks. The operation was successfully concluded after 15 hours.

Current situation and further care

Not only the operation itself but also the first days thereafter continued optimally for the patient. His condition is very good under the circumstances. Now it is a matter of avoiding future wound healing disorders, infections, strong side effects caused by the drugs and, in particular, any rejective reaction .

Quite a number of measures were taken to this effect: close monitoring, antibiotic prophylaxis, drug monitoring and immuno-monitoring. To avoid degeneration of the muscles, these are regularly stimulated with physiotherapy, among others. The patient is also given psychological support.

Worldwide, not many hands and lower arms have been transplanted to date. The transplantation, performed in Munich, represents an even greater challenge: it also encompassed the elbow joint as well as the upper arm, signifying significantly larger regeneration areas and a more difficult immunological situation.

Allogenic upper arm transplant: an immunological challenge
In contrast to the transplant of solid organs (liver, kidney, pancreas, etc.), an extremity histologically represents heterogeneous tissue, consisting of various components with varying immunogeneity. From an immunological point of view, the focus is on:

1)the skin, containing cells with high immunogeneity

2)bone marrow, which is also transferred within the scope of an upper arm transplant

The highly immogeneous cells of the skin lead to a strong immuno-reaction in the host. During an upper arm transplant, approximately 20% of the body's entire skin surface is transplanted.

At least initially, this requires a strong immunosuppressive therapy with all the possible side effects (e.g. infections Furthermore, the skin lacks a simple lab-chemical parameter (such as creatinine during a kidney transplant) to enable the recognition of an immunological reaction in the host. The diagnosis of an immunological defence reaction is thus based on the clinical assessment of the skin, regular skin biopsies and different immunological tests. This type of monitoring is far more complex than after transplantation of solid organs.

The hollow bones in the upper arm contain large volumes of bone marrow (in contrast to a hand transplant, during which hardly any bone marrow is transplanted). Bone marrow consists of immuno-competent cells, which could trigger a so-called graft-versus-host-reaction (GvHD).

This means, that these cells are able to attack the host. Such an attack denotes a life-threatening situation for the host. The extent of the risk after an upper arm transplant is difficult to assess, as it has been shown that preclinical data cannot be directly transferred to the human situation. This also requires different immunological examinations in order to recognise and treat the occurrence of such a reaction at an early stage.

In principle, upper arm transplantation combines the immunological problems of bone marrow transplantation with those of solid organ transplantation. In the long run, this is joined by possible side effect caused by immuno-depressors. From a transplantation surgeon's point of view, upper arm transplantation thus represents an interesting challenge, which also offers the opportunity of making a contribution to understanding immunological processes after transplantation.
