    New Aquifer In The Greenland Ice Sheet Discovered
    By News Staff | December 22nd 2013 12:30 PM | Print | E-mail | Track Comments

    A new aquifer in the Greenland Ice Sheet holds liquid water all year long in the otherwise perpetually frozen winter landscape. And it's big - 27,000 square miles.

    The reservoir is a "perennial firn aquifer" because water persists within the firn; layers of snow and ice that don't melt for at least one season. Researchers believe it figures significantly in understanding the contribution of snowmelt and ice melt to sea levels.  The Greenland Ice Sheet is vast, covering roughly the same area as the states of California, Nevada, Arizona, New Mexico, Colorado and Utah combined. The average thickness of the ice is 5,000 feet.

    A team led by Rick Forster, professor of geography at the University of Utah, has been doing research in southeast Greenland since 2010 to measure snowfall accumulation and how it varies from year to year. The area they study covers 14 percent of southeast Greenland yet receives 32 percent of the entire ice sheet's snowfall, but there has been little data gathered.

    In 2010, the team drilled core samples in three locations on the ice for analysis. Team members returned in 2011 to approximately the same area, but at lower elevation. Of the four core samples taken then, two came to the surface with liquid water pouring off the drill while the air temperatures were minus 4 degrees Fahrenheit. The water was found at about 33 feet below the surface at the first hole and at 82 feet in the second hole.

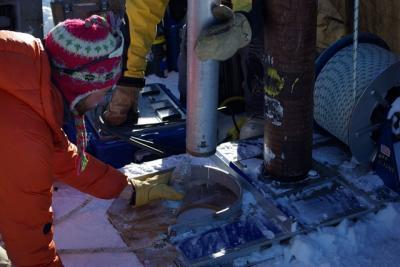

    Water from the Greenland perennial firm aquifer draining from a core extracted 40 feet below the surface of the ice sheet in April, prior to seasonal melt, with air temperatures 5 degrees F confirming water was retained at depth throughout the winter. Credit: Ludovic Brucker

     "Of the current sea level rise, the Greenland Ice Sheet is the largest contributor – and it is melting at record levels," says Forster, lead author and professor of geography at the University of Utah. "So understanding the aquifer's capacity to store water from year to year is important because it fills a major gap in the overall equation of meltwater runoff and sea levels.

    "This discovery was a surprise. Although water discharge from streams in winter had been previously reported, and snow temperature data implied small amounts of water, no one had yet reported observing water in the firn that had persisted through the winter."

    The aquifer is extensive, covering 27,000 square miles -- larger than the state of West Virginia. It is similar in form to a groundwater aquifer on land that can be used for drinking water. "Here instead of the water being stored in the air space between subsurface rock particles, the water is stored in the air space between the ice particles, like the juice in a snow cone," Forster adds. "The surprising fact is the juice in this snow cone never freezes, even during the dark Greenland winter. Large amounts of snow fall on the surface late in the summer and quickly insulates the water from the subfreezing air temperatures above, allowing the water to persist all year long."

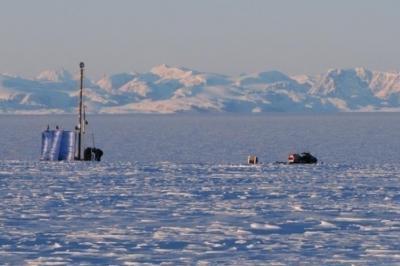

    This drill rig was used to extract firn cores from within the Greenland firn aquifer. One of the snowmobiles used in the 186 mile traverse of the ice sheet to reach the drill site. Clément Miège, University of Utah Ph.D. student and Terry Gacke, Ice Drilling Design and Operations. Credit: Evan Burgess

    Until now, calculations of the ice sheet mass changes did not include a year-round storage mechanism for liquid water. Models predicted that water either flowed into rivers and lakes on the ice surface, into crevasses and subglacial streams that eventually run into the sea, or was refrozen within the ice sheet. Discovery of the perennial aquifer will help scientists predict the movement and temperature of water within the ice sheet with more precision.

    Forster says the reservoir's exact role is unknown. "It might conserve meltwater flow and thus help slow down the effects of climate change. But it may also have the opposite effect, providing lubrication to moving glaciers and exacerbating ice velocity and calving increasing the mass of ice loss to the global ocean."

    As for whether climate change caused the aquifer to form, simulations of the Greenland Ice Sheet going back to the early 1970s suggest it has been around for a long time.


    How the Study was Conducted



    The previously unknown storage mode was found in the southeast section of Greenland, where conditions combine to provide sufficient rain and snowmelt to fill the firn with water, as well as high levels of snow accumulation that insulate the water from freezing during the winter.

    The team used data collected by airborne and ground-penetrating radar to pinpoint the aquifer, and then took core samples on the ground.

    Airborne radar imagery was collected in the area by NASA Operation IceBridge, which is a program directed at collecting images of Earth's polar ice in unprecedented detail to better understand the processes that connect polar regions with climate change. Ground-penetrating radar and a roving Global Positioning System navigation unit also were towed across the ice in the same area via snowmobile, collecting data every five seconds.

    Researchers found that the radar images from air and ground corresponded on both the depth of a bright horizon, indicating where there is a change in consistency of the ice, as well as the undulations of the horizon across distance of about 15 miles. This was confirmation that the airborne radar could map the aquifer just as well as the ground-based radar.

    Core samples were taken with a 4-inch-diameter drill. Two segments were extracted that were saturated with liquid water – one from a depth of about 33 feet and another the following day about a mile east and at a depth of more than 80 feet.

    Temperatures in the spring of 2011 were below average. Forster notes that, "because air temperatures were minus 4 degrees Fahrenheit during drilling and because surface melting in the area did not begin until June in 2011, there is no doubt that the water found in the firn had persisted through the winter."

    Published in Nature Geoscience.
    Source: University of Utah
